Analisa palang pipa dgn winch mount berdasark aspek keselamatan NHTSA:

Analisa palang pipa dgn winch mount berdasark aspek keselamatan NHTSA:

Analisa palang pipa dgn winch mount berdasark aspek keselamatan NHTSA:

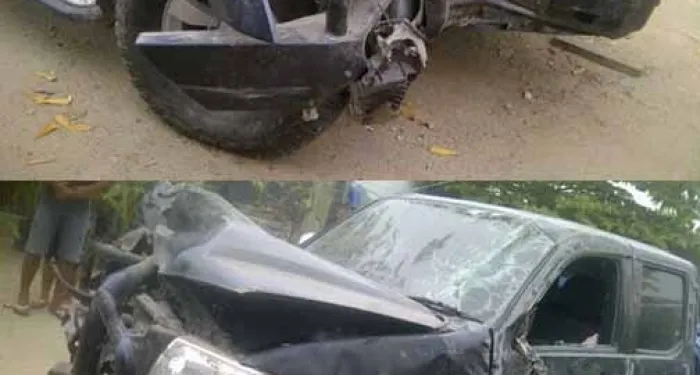

- Palang pipa > tanpa crumple zone ( yg berfungsi untuk menyerap energi tabrakan )juga meberikan signal yg salah pada G sensor Airbag – mengaktifkan airbag terlalu dini, sehigga tidak compatible dgn Airbag system
- Instalasi winch diluar > adalah ilegal > Roller winch diluar + sudut yg tajam sangat berbahaya saat tabrakan. Potensi cedera & korban tersangkut di palang pipa sangat besar (melanggar peraturan sharp object – pedestrian safety rules )
- Preasure point saat tabrakan pada palang pipa bisa 90 x lipat dari Winch bar Forest ( contoh: misalnya saat tabrakan area yg contact selebar 70 cm > pada palang pipa contact point > 20 cm x2mm = 14cm/segi. Pada winchbar Forest > 18cm x 70 cm = 1260cm/segi. Dgn asumsi mobil LV ( 1900 kg ) melaju dgn kecepatan 50 km/jam saat tabrakan energi kinetik adalah 70.000 joule . contact point pada palang pipa adalah sebesar 5000 joule/ sq cm – contact point pada winch bar Forest Cuma 55,5 joule/sq cm ) contoh clasik adalah Tank Abraham seberat 70 ton memiliki preasure point ketanah setara luas kedua kaki perempuan seberat 50kg.Preasure point > memusatkan energi pada titik kecil , sehingga efek merusak sangat besar.
- Menggangu mobilitas > palang pipa menjadikan mobil lebih panjang 35 cm ( diukur dari titik roller winch ) – pada Winch bar Forest Cuma lebih panjang 12cm
- Mengurangi Approach angel hingga 5 derajat ( sangat menggangu saat tanjakan ) – pada Winch bar Forest > Justru memperbaiki approach angle hingga 3 derajat
Perbandingan dgn Palang Winch bar Forest:
- Memiliki crumple zone & telah lulus sertifikasi keselamatan ADR69/00 - Airbag compatible
- Desain memenuhi sharp object rule – ada 2 karet peredam benturan didepan – ketiadaan sudut keras/runcing di palang – winch roller dipasang tersembunyi
- Palang yg ramping membantu mobilitas & memperbaiki apporch angle
- Sebagai tempat untuk winch – 3 dudukan antena – 2 hilift jack point – tempat lampu
- Palang dilengkapi 3 skid plate & lampu indikator led
Hasil test Cuma untuk kalangan sendiri & pihak yg terkait – tidak di perkenankan untuk disebarluaskan tanpa confirmasi dari pihak PT Sukses Selaras SentosaThis information is subject to change. Confidential information, which should not be shared with a third partywithout a written consent from PT Sukses Selaras Sentosa Representative.
